Thermal control defines the long-term comfort and efficiency of every home. As energy codes tighten and building science evolves, insulation performance is under more scrutiny than ever. Knowing how to specify the correct insulation R value can directly affect how a structure handles real-world demands.

How Insulation R Value Influences Building Behavior

At its core, insulation R value measures resistance to heat flow through a material. If a product is rated at R-20, it means it slows thermal transfer at a measurable and consistent rate. But that value only reflects part of the picture—installation quality, moisture exposure, and overall wall assembly performance all affect whether those numbers hold up in the field.

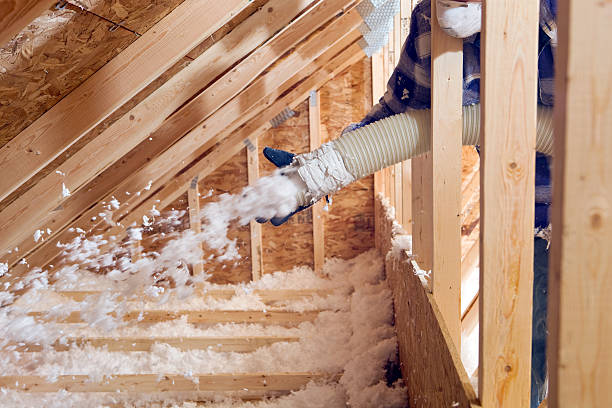

Attics in colder regions often require insulation values between R-49 and R-60, depending on the climate zone and roof construction. Recommended wall R-values for different climate zones usually range between R-13 and R-23, though the addition of exterior layers or structural systems can increase that number. Floors and crawl spaces present their own challenges; applying R-25 to R-30 under conditioned areas helps ensure stable temperatures and indoor comfort in every season.

Assembly Quality vs. Product Rating: Why it Matters

While datasheets focus on material ratings, effective performance depends on how insulation is used across the whole envelope. Spray foam may deliver a higher insulation R value per inch than batt insulation, but even high-performance materials underperform when applied inconsistently. Rigid foam systems also provide stable values but must be sealed at seams and openings to prevent thermal bypass.

Insulation should be viewed in the context of the wall system, not as an isolated element. Gaps at studs, joints, and penetrations introduce weaknesses that even high R-value materials can't compensate for alone. Thermal continuity becomes the priority, whether through air barriers, sealing techniques, or selecting systems that include insulation as part of the structural core.

Factoring in Structural Contributions to R-Value

It’s common to think of insulation R value as coming only from the insulation layer, but that misses the contribution of other materials. How concrete systems influence overall thermal performance provides one example of how R-value is influenced by mass, orientation, and material behavior under variable conditions. These characteristics matter most in assemblies where moisture resistance, vapor control, and load capacity intersect with energy performance.

High-performance wall systems consider all of these elements—sheathing, insulation, air barrier, and finish—working as a whole to resist thermal flow and minimize performance loss over time.

Meeting Today’s Energy Expectations with Smarter Envelope Design

Many residential projects are designed with energy scoring systems in mind. From local efficiency programs to national benchmarks like the DOE’s Zero Energy Ready Home standard, insulation R value plays a measurable role in performance modeling. Reducing energy loss through the envelope lowers mechanical loads, enabling downsized systems and improving overall resilience.

Builders aiming for lower HERS Index scores or Net Zero capabilities are already integrating advanced insulation strategies as part of code compliance. Optimizing wall and roof systems with continuous insulation or systems that embed R-value directly into their core components improves thermal consistency while streamlining construction steps. Insulated concrete form systems that integrate insulation within the structure help maintain long-term R-value while reducing thermal bridging and air leakage.

Thermal Control Is Also About Comfort

Beyond compliance, properly designed insulation systems translate to better occupant experience. Minimizing drafts, stabilizing room-to-room temperatures, and preventing sharp seasonal shifts all stem from tight, well-insulated assemblies. These are not abstract benefits—they’re the physical outcome of thermal continuity, and they directly affect how livable a home feels on a daily basis.

Homeowners may not always reference R-value, but they’ll notice whether a space is stable and responsive, or prone to cold zones and temperature swings. Designing for comfort is as much about smart material use as it is about code minimums.

Integrated Systems that Preserve R-Value Over Time

Wall assemblies that merge structure and insulation can eliminate many of the variables that reduce long-term performance. When insulation is embedded in a solid-core configuration, there's less chance of compression, displacement, or poor installation. That consistency matters, especially when the project’s performance will be evaluated under testing conditions.

Degradation from moisture or air leaks makes it vital to choose systems that shield insulation. Above-grade, below-grade, or within the core envelope, insulation must deliver consistent performance year after year—not just during initial occupancy. Fox Blocks ICFs maintain a stable R-value through this embedded structure, ensuring consistent thermal resistance in the real world—not just in lab conditions.

Evaluating Long-Term Value and Material Stability

Accurate use of insulation R value involves considering longevity, placement, and risk exposure. Homes built today must perform not just during the next cold snap, but for the next 30 to 50 years. That expectation raises the bar for what’s considered acceptable thermal performance—and it brings greater attention to which systems truly hold their rated values under load, over time.

Specifying by number alone misses this nuance. What builders and specifiers are ultimately evaluating is whether a system provides true continuity—something that only integrated, high-performance envelopes can consistently achieve.

Boost Insulation R Value Performance with Fox Blocks High-Efficiency Systems

When project goals include stability, code alignment, and measurable energy performance, Fox Block’s systems provide a streamlined way to meet those expectations. Our insulated concrete form assemblies deliver reliable, built-in thermal resistance that holds up under both modeling and field conditions. Contact us today for more information.
