Fox Blocks ICF Energy Efficiency: Build Smarter, Save More
Energy efficiency is no longer a luxury; it’s a baseline expectation for modern builders, architects, and homeowners. Fox Blocks Insulated Concrete Forms (ICFs) are engineered to exceed that expectation, delivering a wall assembly that cuts heating and cooling costs by up to 25% compared to traditional wood-frame construction. Whether you’re building a net-zero home, a commercial facility, or a resilient school, Fox Blocks ICFs give your project an unmatched thermal performance advantage.
What Makes Fox Blocks ICFs So Energy Efficient?
The energy performance of a Fox Blocks wall comes from four built-in systems working together. No add-ons required.
1. Continuous Double-Layer Insulation (R-23.5+)
Fox Blocks ICFs feature continuous EPS foam insulation on both sides of a reinforced concrete core. This delivers an R-value of 23.5 or greater, far exceeding typical 2x6 wood-frame walls, which achieve R-19 or less and are interrupted by thermal bridges at every stud. The continuous insulation in Fox Blocks walls eliminates those thermal breaks, keeping conditioned air inside where it belongs.
- R-value: 23.5+ (whole-wall performance)
- No thermal bridging from studs or framing
- Continuous EPS foam on interior and exterior wall faces
- Supports Zero Energy Ready and net-zero building certifications
2. Solid Monolithic Air Barrier
Air leakage is one of the biggest drivers of energy loss in buildings. Fox Blocks walls form a solid, monolithic concrete core that acts as a continuous air barrier. Exceeding the minimum airtightness requirements set by the IECC and other building energy codes. A tighter building envelope means your HVAC system works less, and occupants stay more comfortable year-round.
- Exceeds code minimum for airtightness
- Reduces HVAC load and equipment sizing
- Improves indoor air quality and climate control
- Minimizes infiltration of allergens, dust, and outdoor pollutants
3. Continuous Natural Vapor Barrier
Moisture intrusion is a silent energy thief, degrading insulation performance and inviting mold and rot. Fox Blocks wall assemblies achieve a PERM rating of less than 1.0, making them a continuous natural vapor barrier. By virtually eliminating moisture intrusion, Fox Blocks walls maintain their thermal performance throughout the building's lifetime.
- PERM rating < 1.0 -continuous natural vapor barrier
- Eliminates moisture-driven insulation degradation
- Reduces mold and rot risk
- Healthier indoor air quality for occupants
4. Thermal Mass of Concrete
Concrete’s thermal mass acts as an energy buffer. It absorbs heat during the day and releases it slowly at night, reducing peak HVAC demand. This heat-flywheel effect complements the high R-value insulation to deliver whole-wall performance that exceeds what R-value numbers alone can capture.
- Reduces peak heating and cooling loads
- Stabilizes indoor temperatures across day/night cycles
- Contributes to whole-wall energy performance beyond nominal R-value
How Much Can You Save? ICF Energy Efficiency by the Numbers
Studies and real-world builds consistently show that ICF construction delivers dramatic energy savings over conventional framing methods:
- Up to 25% reduction in heating and cooling costs vs. wood-frame construction
- ICF homes use 30–50% less energy for HVAC annually
- Lower HVAC equipment sizing requirements due to reduced load
- Fox Blocks ICF walls comply with and exceed IECC energy codes across all U.S. climate zones
- Supports LEED NCv4 certification (resource available in Fox Blocks library)
- Proven in net-zero and zero-energy projects, including the Discovery Elementary School. One of only four schools in the U.S. to receive zero energy certification
These savings compound over the building’s lifetime, making Fox Blocks ICFs one of the most cost-effective investments a builder or owner can make.
Fox Blocks ICF Energy Performance: Compliance & Certifications
Fox Blocks walls are built to meet and exceed today’s most rigorous energy codes and standards. They’re ready for tomorrow’s requirements too.
Building Code Compliance
- International Energy Conservation Code (IECC) — Thermal Resistance compliant
- LEED NCv4 eligible
- SB-12 Compliance (Ontario, Canada)
- RDH Laboratory-verified Energy Code Review (USA & Canada)
- Intertek Certification Listing
High-Performance Building Standards
- Zero Energy Ready Home (U.S. DOE)
- Net-Zero Energy Building capable
- FEMA-ATFP Federal Military Standards (resilience + energy)
- WBDG Unified Facilities Criteria (UFC) compliant
Architects and engineers can access Fox Blocks’ full library of code-compliance documents, thermal-resistance calculations, and energy-code reviews here.
ICF vs. Wood Frame: Energy Efficiency Comparison
How does Fox Blocks ICF construction stack up against traditional wood-frame building? The difference is significant across every energy performance metric:
Insulation (R-Value)
- Fox Blocks ICF: R-23.5+ continuous, whole-wall
- Wood Frame (2x6): R-19 nominal, interrupted by studs (effective R-14 to R-16)
Air Leakage
- Fox Blocks ICF: Solid monolithic air barrier, exceeds code minimums
- Wood Frame: Requires additional air barrier membranes; prone to seam leakage
Moisture Control
- Fox Blocks ICF: Natural vapor barrier, PERM < 1.0
- Wood Frame: Requires separate vapor barrier; susceptible to moisture damage
Thermal Bridging
- Fox Blocks ICF: None, continuous insulation with embedded fastening strips
- Wood Frame: Significant thermal bridging at every stud, header, and corner
Annual Energy Savings
- Fox Blocks ICF: Up to 25% reduction in heating and cooling costs
- Wood Frame: Baseline (0%)
Energy Efficiency for Every Building Type
Fox Blocks ICF energy performance scales across residential and commercial applications:

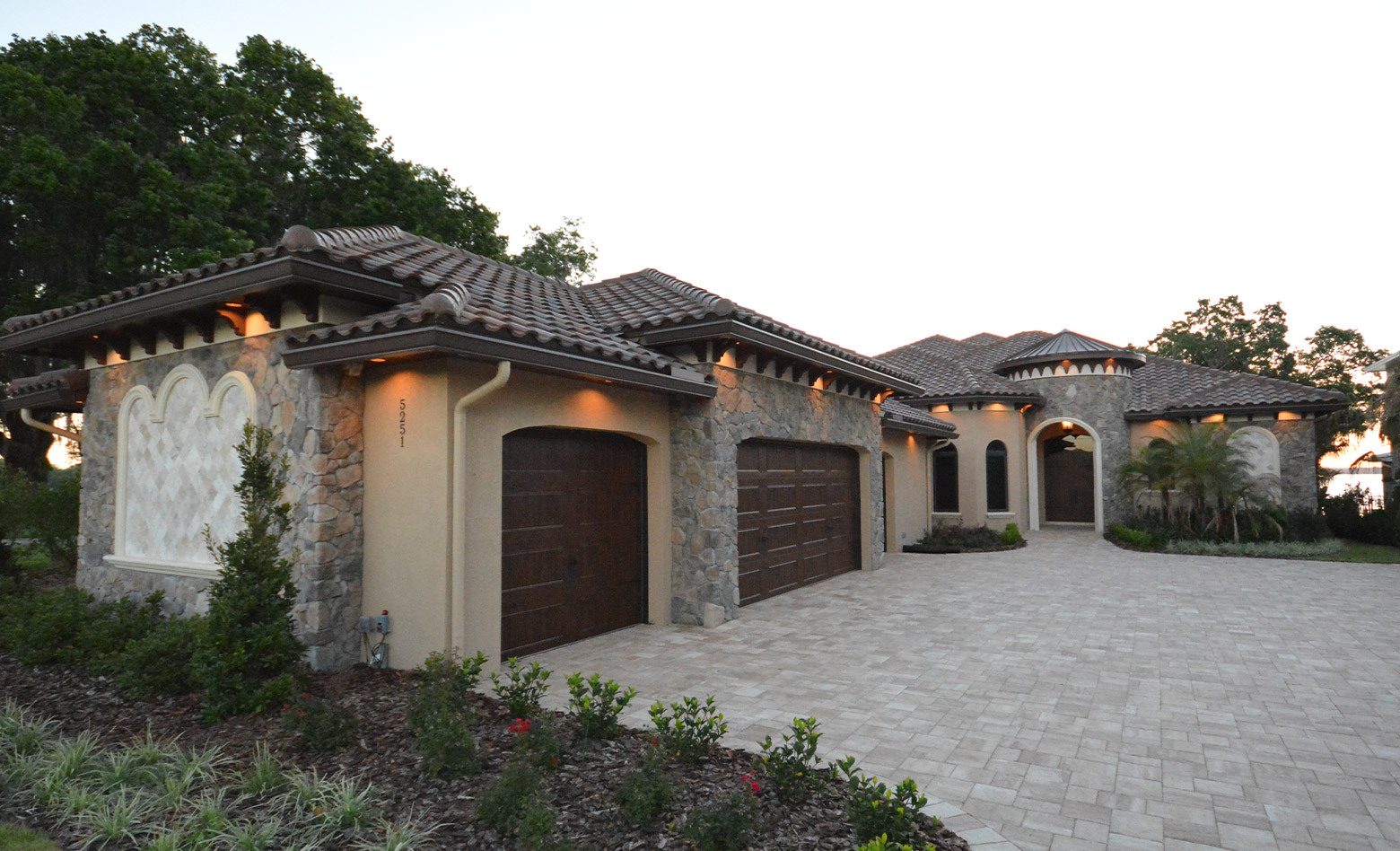

Residential / Single-Family Homes
Homeowners building with Fox Blocks enjoy significantly lower monthly utility bills, enhanced indoor comfort, and a home that’s ready for net-zero energy goals from day one. Fox Blocks ICF homes maintain even temperatures year-round. No cold spots in winter, no heat gain in summer.
Commercial Buildings
Offices, hotels, retail centers, and government facilities benefit from reduced HVAC operating costs and smaller mechanical systems. Fox Blocks ICF walls also contribute to LEED points and support corporate sustainability commitments.
Schools & Institutional Buildings
Energy-efficient school buildings translate directly to lower operating budgets and better learning environments. That’s money that can be put back directly into the school's annual budget. Discovery Elementary School, built with Fox Blocks, earned zero-energy certification, making it one of only four schools in the nation to achieve this distinction.
Below-Grade Applications
Fox Blocks ICFs are equally effective for basement and below-grade walls, where continuous insulation and moisture resistance are critical for long-term energy performance and building health.
Building Near a Data Center?

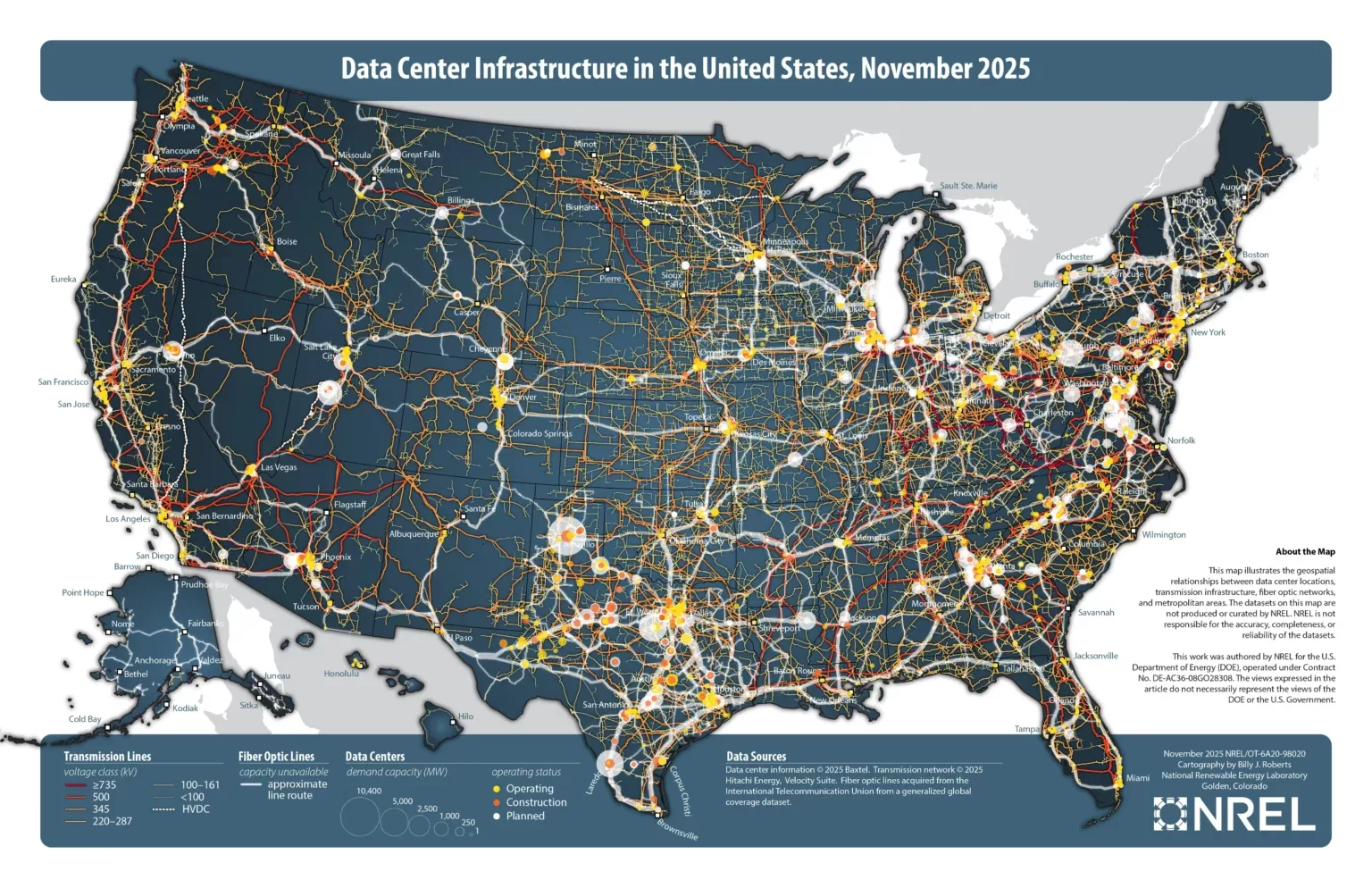

Image Source: National Renewable Energy Laboratory
With more than 5,000 data centers operating across the US, and hundreds more under construction, many families are finding their neighborhoods transformed by 24/7 noise and heat output.
- Industrial cooling systems and backup generators can register above 65 dB, easily penetrating standard wood-frame walls
- Facilities running around the clock raise ambient temperatures in surrounding neighborhoods, driving up cooling costs year-round
Fox Blocks ICF construction is the proven solution for both delivering STC 55 sound ratings and R-23.5+ thermal performance in a single wall assembly.
Resources for Architects, Builders & Engineers
Fox Blocks maintains one of the most comprehensive ICF technical libraries in the industry. Download energy-related resources, including:
- Thermal Resistance (R-Value) Calculations
- IECC Energy Code Compliance documentation
- RDH Laboratory Energy Code Reviews (USA & Canada)
- LEED NCv4 compliance guide
- SB-12 Ontario compliance documentation
- BIM/Revit files, CAD details, and specifications
All resources can be found here.
Frequently Asked Questions: Fox Blocks Energy Efficiency
What is the R-value of Fox Blocks ICF walls?
Fox Blocks ICF walls deliver an R-value of 23.5 or greater. Unlike wood-frame walls, this is a continuous, whole-wall R-value with no thermal bridging from studs or framing members.
How much energy can I save with Fox Blocks ICF construction?
Buildings constructed with Fox Blocks ICFs typically see heating and cooling cost reductions of up to 25% compared to conventional wood-frame buildings. Actual savings vary by climate zone, building design, and occupancy.
Are Fox Blocks ICF walls compliant with energy codes?
Yes. Fox Blocks ICF walls meet and exceed IECC energy code requirements across all U.S. climate zones. They also comply with Canadian energy codes and support LEED NCv4 certification.
Can Fox Blocks help achieve net-zero energy building goals?
Absolutely. The combination of R-23.5+ continuous insulation, an airtight monolithic concrete core, and natural vapor barrier makes Fox Blocks ICF walls an ideal foundation for Zero Energy Ready and net-zero building projects.
Do Fox Blocks ICF walls work in all climates?
Yes. Fox Blocks ICF walls perform in all climate zones, from cold northern climates where insulation is critical for heat retention, to hot southern climates where airtightness and thermal mass reduce cooling loads.
